The product is a 5mm (T1 3/4) LED with red, yellow, and green emission colors. The luminous intensity range is between 0.4-20.0 mcd. It can be used as an optical indicator. There are two packaging methods: with and without leads.

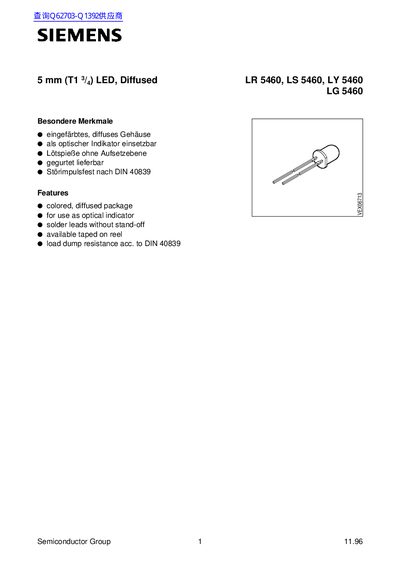

This document provides technical specifications for the Siemens Semiconductor Group's LR 5460, LS 5460, LY 5460, and LG 5460 LED series. It details various color options including red, super-red, yellow, and green, with specific data on luminous intensity, wavelength, and viewing angles.
| Operating temperature range | -55...+100 C |
|---|---|
| Forward current | 45 mA (LR), 40 mA (LS, LY, LG) |
| Surge current | 0.5 A |
| Reverse voltage | Va (unspecified) |
| Power dissipation | 140 mW |
The devices operate within a temperature range of -55 to +100 C.
