HYB 3164800AJ/AT(L) -40/-50/-60 is a 64 MBit dynamic RAM organized as 8,388,608 by 8 bits. The device is fabricated in an advanced second generation process and features low power, high performance, low voltage and high reliability.

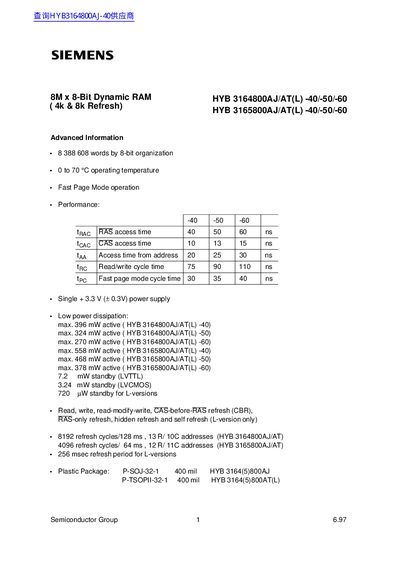

This document is a technical datasheet for the Siemens HYB3164(5)800AJ/AT(L)-40/-50/-60 series of 8M x 8-bit Dynamic RAMs. The devices are fabricated using advanced second-generation 64 Mbit CMOS silicon gate process technology and operate with a single +3.3V power supply.
| Organization | 8M x 8-bit (64 MBit) |
|---|---|
| Operating Temperature | 0 to 70 °C |
| Power Supply Voltage | +3.3V (+/-0.3V) |
| Access Time (40ns version) | 40 ns |
| Package Type | P-SOJ-32-1 or P-TSOPII-32-1 |
| Refresh Cycles (HYB 3164) | 8192 cycles/128 ms |
The device operates with a single +3.3V power supply.
Yes, the HYB 3165800AT(L) parts have a sleep mode supported by Self Refresh.
The maximum active power dissipation is 396 mW for the HYB 3164800AJ-40 version.
