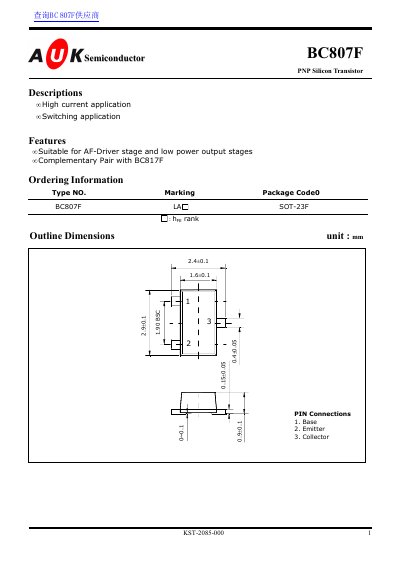

KST-2085-000 1 BC807F is a PNP silicon transistor suitable for high current and switching applications. It is suitable for AF driver stages and low power output stages, and is complementary to BC817F.
This document is a technical datasheet for the AUK Semiconductor BC807F, a PNP silicon transistor designed for high current applications such as switching and AF-driver stages. It serves as a complementary pair to the BC817F.
The datasheet provides comprehensive electrical specifications including absolute maximum ratings like collector-emitter voltage (-35V) and collector current (800mA). It also lists typical DC current gain values ranging from 100 to 630 depending on the specific batch, along with transition frequency and capacitance data.
| Collector-Base voltage | -50 Vv |
|---|---|
| Collector-Emitter voltage | -35 Vv |
| Emitter-base voltage | -5 Vv |
| Collector current | -800 mA |
| Collector dissipation | 200 mw |
| Junction temperature | 150 °C |
| DC current gain (Typical) | 630 |
| Transition frequency ft | 100 MHz |
It is suitable for high current applications and switching applications.
Yes, it acts as a complementary pair to the BC817F.
The package code is SOT-23F.
