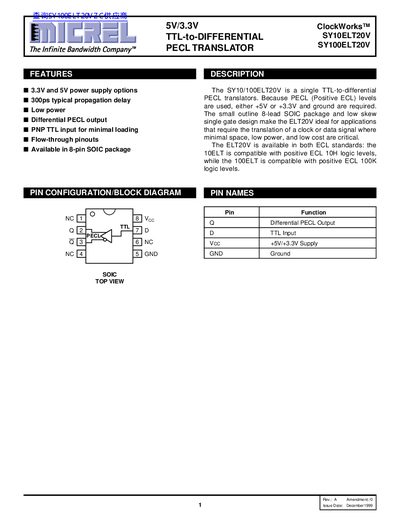

The SY10/100ELT20V is a single TTL-to-differential PECL translator. It features 3.3V and 5V power supply options, 300ps typical propagation delay, low power consumption, differential PECL output, and PNP TTL input. The ELT20V is ideal for applications that require the translation of a clock or data signal where minimal space, low power, and low cost are critical.
The Micrel SY100ELT20V is a single TTL-to-differential PECL translator designed for applications requiring the translation of clock or data signals where minimal space, low power, and low cost are critical. It is compatible with positive ECL 100K logic levels and is available in both +5V and +3.3V power supply options.
The device features a small outline 8-lead SOIC package and a low skew differential PECL output single gate design. It includes a PNPTTL input for minimal loading and offers flow-through pinouts. The datasheet provides absolute maximum ratings, DC and AC electrical characteristics, and product ordering information.
| Typical Propagation Delay | 300ps |
|---|---|
| Package Type | 8-lead SOIC |
| Operating Temperature Range | -40 to +85 °C |
| Storage Temperature Range | -65 to +150 °C |
| Maximum Input Frequency | 350 MHz |
| Power Supply Voltage Options | +5V or +3.3V |
The device requires either +5V or +3.3V and ground.
The typical propagation delay is 300ps.
