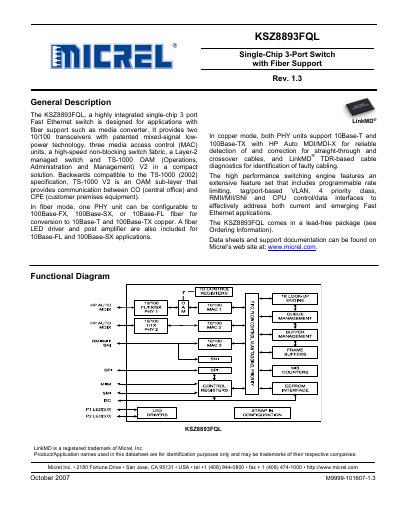

The KSZ8893FQL is a single-chip 3-port Fast Ethernet switch that supports fiber. It provides two 10/100 transceivers with patented mixed-signal low-power technology, three media access control (MAC) units, a high-speed non-blocking switch fabric, a Layer-2 managed switch and TS-1000 OAM (Operations, Administration and Management) V2 in a compact solution.
The KSZ8893FQL is a highly integrated single-chip 3 port Fast Ethernet switch designed for applications with fiber support such as media converters. It provides two 10/100 transceivers, three MAC units, and a high-speed non-blocking switch fabric in a compact lead-free package.
| Number of Ports | 3 Port |
|---|---|
| Speed Standard | 10/100 Mbps |
| Switch Architecture | Non-blocking, Store-and-forward |
| Flow Control | Full duplex IEEE 802.3x, Half-duplex back pressure |
| Fiber Support Modes | 10Base-FL, 100Base-SX, 100Base-FX |
| Management Interfaces | SMI, SPI, I2C, MII Management (MIIM) |
| Package Type | 128-Pin PQFP |
It is designed for applications with fiber support such as media converters.
Yes, it supports IEEE 802.1q VLAN support for up to 16 groups.
The device supports SMI, SPI, I2C management interfaces and MII management.
