This datasheet provides detailed information on the EA2 series, including product features, applications, and external dimensions.

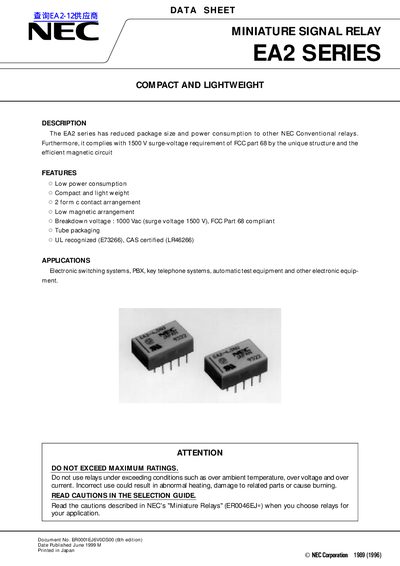

This document is a datasheet for the NEC EA2 Series of miniature signal relays. It highlights features such as reduced package size, low power consumption, and compliance with FCC Part 68 surge-voltage requirements.
The text provides detailed technical data including performance characteristics, electrical ratings, mechanical dimensions, and part number systems. It also includes application guides for coil connections and soldering procedures.
| Contact Form | 2 form c |
|---|---|
| Maximum switching power (resistive) | 30 W |
| Breakdown voltage | 1000 Vac |
| Surge voltage (FCC Part 68) | 1500 V |
| Ambient temperature range | -40°C to 85°C |
| Weight | Approximately 1.5 grams |
The minimum contact rating is 10 mVdc and 10 uA.
Soldering should be done at 250°C within 10 seconds.
