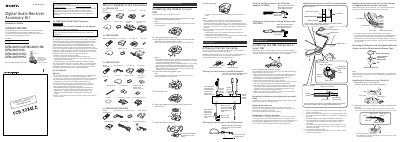

SONY DRN-XM01C2/DRN-XM01R2/ DRN-XM01H2/ DRN-XM01CK2/ DRN-XM01HK2 Digital Audio Receiver Accessory Kit Installation Guide

About this manual

This guide provides installation instructions for the Sony DRN-XM01 Series Digital Audio Receiver Accessory Kit. It covers the setup of the car cradle and stand, the installation of the XM antenna on the roof or trunk lid, and the proper placement of ferrite cores to comply with FCC regulations. The document includes specific steps for different models and safety warnings regarding vehicle operation.

What's inside

• OWNER'S RECORD
• LIMITED WARRANTY
• Parts for Installation
• Installing the Cradle
• Affixing the ferrite cores
• Installing the XM Antenna
• Installing the Antenna on the Roof
• Installing the Antenna on the Trunk Lid

Frequently asked questions

What is the minimum surface temperature required for the double-sided tape to stick firmly?

The tape will not stick firmly if the mounting surface temperature is lower than 20°C (68°F).

How long must a cord clamp be left installed before connecting the antenna cord?

You must leave the installed cord clamp for 24 hours before installing the cord.

What is the recommended angle range from the ground to the satellite when placing the antenna on the roof?

The angle from the ground to the satellite should be about 20 - 60 degrees.
