GF1A THRU GF1M SURFACE MOUNT GLASS PASSIVATED JUNCTION RECTIFIER is ideal for surface mount automotive applications. This product features high temperature metallurgically bonded construction and glass passivated cavity-free junction and meets MIL-S-19500 environmental standards.

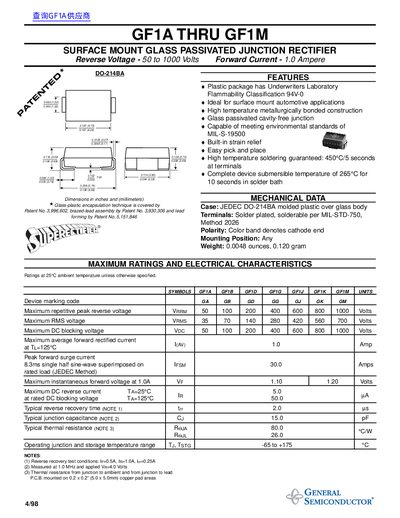

This document is a technical datasheet for the General Semiconductor GF1A through GF1M series of surface mount glass passivated junction rectifiers. The devices are designed with high temperature metallurgically bonded construction and are ideal for automotive applications, meeting MIL-S-19500 environmental standards.
The datasheet provides maximum ratings including reverse voltages from 50 to 1000 Volts and forward currents of 1.0 Ampere. It details electrical characteristics such as peak forward surge current, reverse recovery time, and thermal resistance, along with mechanical data for the DO-214BA plastic package.
| Reverse Voltage Range | 50 to 1000 Volts |
|---|---|
| Forward Current | 1.0 Ampere |
| Package Type | DO-214BA |
| Maximum Peak Reverse Voltage (VRRM) | 50 to 1000 Volts |
| Operating Temperature Range | -65 to +175 °C |
The typical reverse recovery time (ter) is 2.0 ns.
The device guarantees high temperature soldering at 450°C for 5 seconds at terminals.
