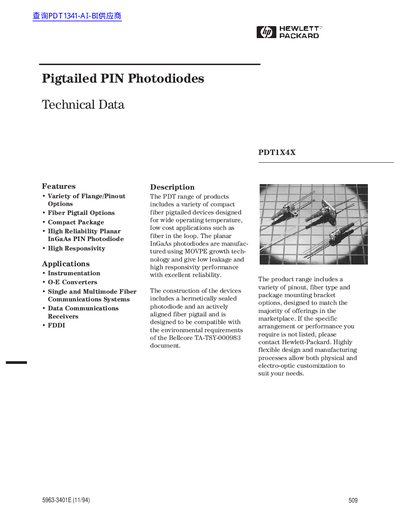

The document introduces the PDT range of products, including a variety of compact fiber pigtailed devices designed for wide operating temperature, low-cost applications such as fiber in the loop. The planar InGaAs photodiodes are manufactured using MOVPE growth technology and provide low leakage and high responsivity performance with excellent reliability. The product features a compact package and high reliability planar InGaAs PIN photodiode, suitable for applications such as instrumentation, O-E converters, single and multimode fiber communications systems, data communications receivers, and FDDI.
The PDT range includes compact fiber pigtailed devices designed for wide operating temperature and low-cost applications such as fiber in the loop. These planar InGaAs photodiodes are manufactured using MOVPE growth technology to provide low leakage and high responsivity with excellent reliability. The construction features a hermetically sealed photodiode and an actively aligned fiber pigtail, compatible with Bellcore TA-TSY-000983 environmental requirements.
| Operating Temperature | -40 to 85 °C |
|---|---|
| Storage Temperature | -40 to 85 °C |
| Power Dissipation | 50 mW |
| Dark Current (Tc = 25°C) | -1 to 1 nA |
| Small Signal Bandwidth | 3 GHz (PDT134X) / 1.5 GHz (PDT144X) |
| Rise/Fall Times | 0.25 to 0.5 nS |
They are designed for instrumentation, O-E converters, single and multimode fiber communications systems, data communications receivers, and FDDI.
The absolute maximum limit for reverse voltage (Vr) is 0 V.
Soldering must not exceed 260 °C for a duration of 10 seconds.
