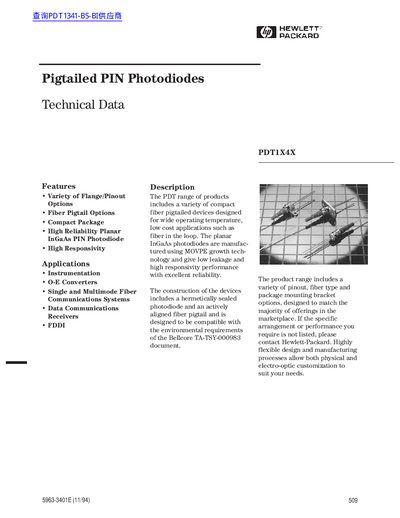

The document introduces the PDT range of products, which are compact fiber pigtailed devices designed for wide operating temperature, low cost applications such as fiber in the loop. The products have low leakage and high responsivity performance with excellent reliability. They are suitable for applications such as instrumentation, O-E converters, single and multimode fiber communications systems, data communications receivers, and FDDI.
The PDT1X4X series consists of compact fiber pigtailed devices featuring planar InGaAs photodiodes manufactured using MOVPE growth technology. These devices are designed for low cost applications such as fiber in the loop, instrumentation, and fiber communications systems, offering high reliability with a hermetically sealed construction.
| Operating Temperature | -40 to 85 °C |
|---|---|
| Storage Temperature | -40 to 85 °C |
| Power Dissipation | 50 mW |
| Responsivity (λ = 1300 nm) | 0.7 A/W |
| Operating Wavelength (80% points) | 1200 to 1650 nM |
| Small Signal Bandwidth (PDT134X) | 3 GHz |
They are designed for instrumentation, O-E converters, single and multimode fiber communications systems, data communications receivers, and FDDI.
The absolute maximum limit for reverse voltage (Vr) is 0 V.
