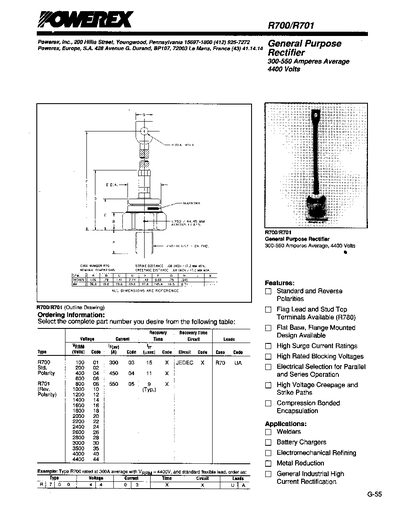

The document details the Powerex R700 and R701 series, which are high-voltage, high-current general purpose rectifiers. These devices feature flag lead and stud top terminals available in various mounting configurations including flat base and flange mount.
Key specifications include average forward currents ranging from 300 to 550 Amperes and repetitive peak reverse voltages up to 4400 Volts. The datasheet provides comprehensive data on absolute maximum ratings, electrical characteristics such as forward voltage drop and reverse recovery time, and thermal resistance values for junction-to-case and case-to-sink applications.
| Average Forward Current | 300-550 Amperes |
|---|---|
| Repetitive Peak Reverse Voltage | 4400 Volts |
The maximum average forward current for the R701_05 model is 550 Amperes.
The device can be stored at temperatures ranging from -65 to +200 °C.
The specified mounting torque is 360 in-lb.
