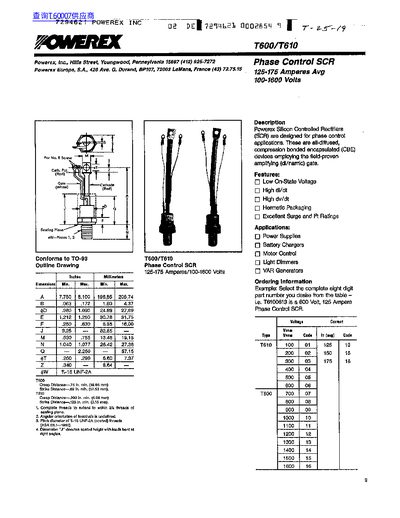

This document provides technical specifications for the Powerex T600 and T610 series Phase Control Silicon Controlled Rectifiers (SCRs). These all-diffused, compression bonded encapsulated devices are designed specifically for phase control applications. Key features include low on-state voltage, high di/dt and dv/dt capabilities, and hermetic packaging.
| Average On-State Current (T600) | 125 Amperes Avg |
|---|---|
| Average On-State Current (T610) | 150 Amperes Avg |
| Peak Gate Power Dissipation | 16 Watts (T600) |
| Maximum Thermal Resistance Junction-to-Case (RθJC) | 2 °C/Watt |
The minimum creep distance for the T600 package is .76 inches (19.05 mm).
