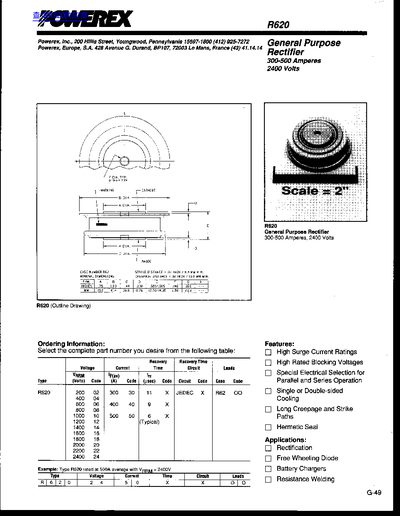

This document is a technical datasheet for the Powerex R620 series of General Purpose Rectifiers. The device is designed with high surge current ratings and high rated blocking voltages up to 2400 Volts. It supports special electrical selection for parallel and series operation, as well as single or double-sided cooling configurations.
| Average Forward Current (IFav) | 300-500 Amperes |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 2400 Volts |
| Storage Temperature (Tstg) | -65 to +190 C |
| Forward Voltage Drop (VF) | 1.40 Volts |
The maximum average forward current is 500 Amperes.
The rated limit for repetitive peak reverse voltage is 2400 Volts.
The device can be stored between -65 and +190 degrees Celsius.
