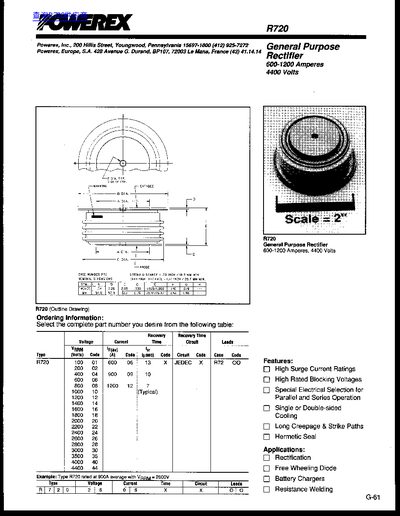

This datasheet details the Powerex R720 general purpose rectifier, rated for 600–1200 amperes and 4400 volts. It includes absolute maximum ratings, electrical and thermal characteristics, and application examples such as battery chargers and resistance welding. The device supports parallel and series operation and features long creepage and strike paths with hermetic sealing options.
The datasheet provides curves for forward voltage drop, power dissipation, and thermal impedance, along with specifications for surge current ratings and reverse recovery time.
| Average Forward Current | 600–1200 Amperes |
|---|---|
| Repetitive Peak Reverse Voltage | 4400 Volts |
| Reverse Recovery Time | 10–13 microseconds |
| Mounting Force | 2000 to 2400 Ibs |
The repetitive peak reverse voltage rating is 4400 volts.
The typical reverse recovery time is 10–13 microseconds.
