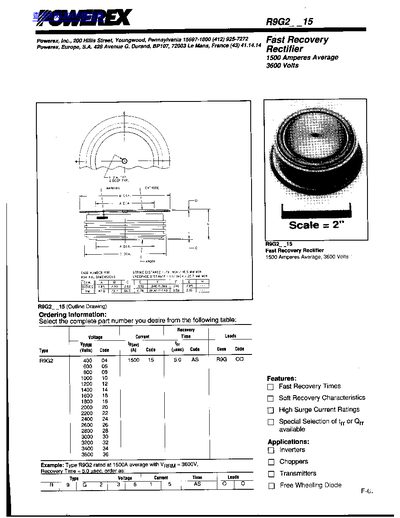

This document is a datasheet for the Powerex R9G2-15 Fast Recovery Rectifier. It specifies that the device has an average forward current of 1500 Amperes and a repetitive peak reverse voltage rating of 3600 Volts.
The text provides absolute maximum ratings, including an RMS forward current of 2350 Amperes and a one-half cycle surge current of 18000 Amperes. It also lists electrical characteristics such as a maximum forward voltage drop of 1.65 Volts at 1500A and a maximum reverse recovery time of 5.0 microseconds under specific test conditions.
| Average Forward Current (I_F(av)) | 1500 Amperes |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 3600 Volts |
| RMS Forward Current (I_Frms) | 2350 Amperes |
| One-half Cycle Surge Current (I_fs) | 18000 Amperes |
| Forward Voltage Drop (V_F) | 1.65 Volts |
| Operating Temperature Range | -40 to +150 °C |
The maximum storage temperature range is -40 to +190 °C.
The device is rated for 1500 Amperes average forward current.
The maximum repetitive peak reverse voltage is 3600 Volts.
The maximum allowable case temperature is 150 °C.
