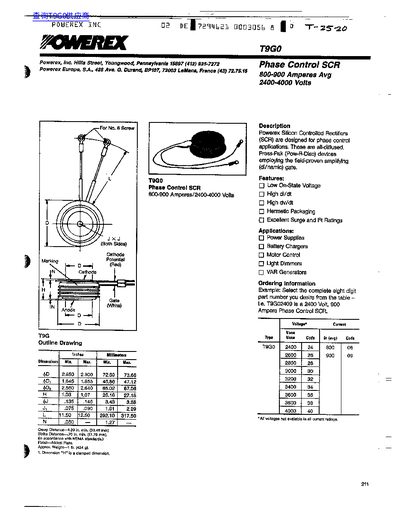

This document is a technical datasheet for the Powerex T9G0 Silicon Controlled Rectifier (SCR). It describes the device as an all-diffused, Press-Pak type designed specifically for phase control applications. Key features include low on-state voltage, high di/dt and dv/dt capabilities, and hermetic packaging.
| Maximum Blocking Voltage | 4000 Volts |
|---|---|
| Average On-State Current | 800-900 Amperes Avg |
| Peak Gate Power Dissipation | 16-18 Watts |
| Operating Temperature Range | -40 to 125 °C |
The device is designed for power supplies, battery chargers, motor control, light dimmers, and VAR generators.
Select an eight-digit part number where the last two digits represent the voltage, such as T9G02409 for 2400 Volts.
