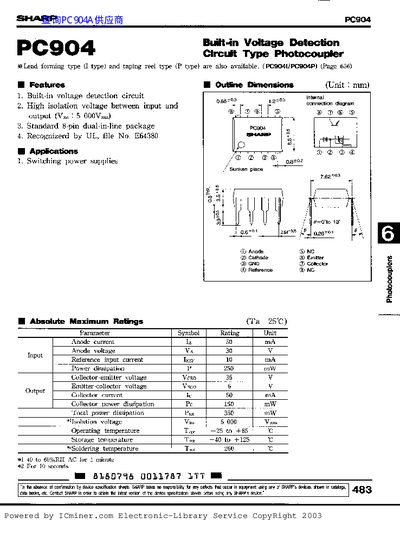

This document is a technical datasheet for the SHARP PC904, an integrated circuit designed as a photocoupler with a built-in voltage detection circuit. It is available in standard 8-pin dual-in-line packages and lead forming or taping reel types (PC904I/PC904P). The device is recognized by UL under file number E64380.
| Isolation voltage | 5 000 Vrms |
|---|---|
| Anode current | 50 mA |
| Collector -emitter voltage | 33 Vv |
| Operating temperature | -25 to +85 C |
| Package type | Standard 8-pin dual-in-line package |
The primary application listed is switching power supplies.
Yes, a taping reel type (P type) is also available alongside the lead forming type.
