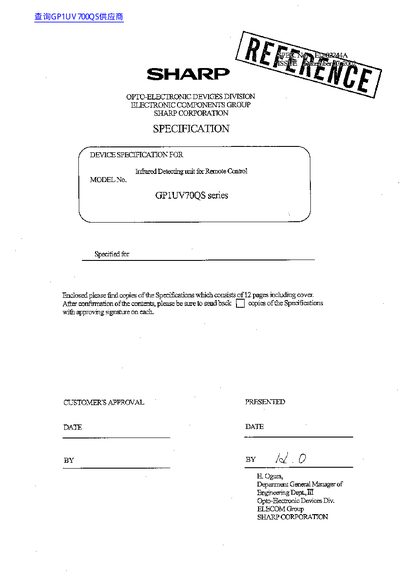

This document provides detailed specifications for the Sharp GP1UV70QS series, an opto-electronic device designed as an infrared detecting unit for remote controls. It covers application guidelines, absolute maximum ratings, and recommended operating conditions for supply voltage and temperature.
The datasheet details electrical characteristics including current dissipation, output voltages, and pulse widths. It also lists specific center frequencies for different models within the series (e.g., 40 kHz for GP1UV70QS) and outlines performance requirements regarding reception distance under various lighting conditions.
| Operating temperature | -10 to +70 °C |
|---|---|
| High level output voltage | Vec - 0.5 V |
| BPF center frequency (GP1UV70QS) | 40 kHz |
Appropriate measures such as fail-safe design and redundant design should be taken to ensure reliability and safety.
The soldering temperature must not exceed 260°C for a duration of 5 seconds.
