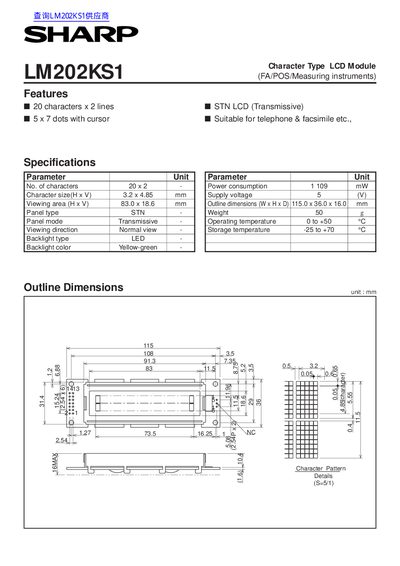

This document describes the features and characteristics of the Character Type LCD Module LM202KS1 (FA/POS/Measuring instruments), including 20 characters x 2 lines, STN LCD (Transmissive), 5 x 7 dots with cursor, suitable for telephone and facsimile, etc.
This document is a technical datasheet for the Sharp LM202KS1, a transmissive Character Type LCD Module designed for applications such as FA, POS systems, and measuring instruments. The module features an HM 20 characters x 2 lines display using a 5 x 7 dot matrix with cursor capability.
| No. of characters | 20x2 |
|---|---|
| Character size (H x V) | 3.2 x 4.85 mm |
| Viewing area (H x V) | 83.0 x 18.6 mm |
| Outline dimensions (W x H x D) | 115.0 x 36.0 x 16.0 mm |
| Weight | 50 g |
| Operating temperature | 0 to +50 °C |
| Storage temperature | -25 to +70 °C |
| Backlight color | Yellow-green |
The module can operate in temperatures ranging from 0 to +50 °C.
The module requires a supply voltage of 5 V.
The module weighs 50 g.
