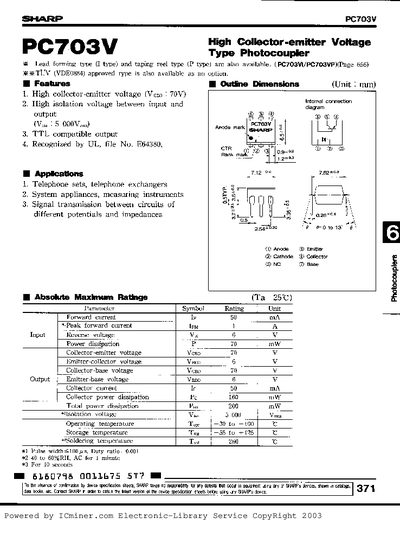

This document is a technical datasheet for the SHARP PC703V, a lead forming type (I type) and taping reel type (P type) available photocoupler. It provides comprehensive data on the device's electro-optical characteristics, including forward voltage, current transfer ratio (CTR), response time, and isolation resistance under standard conditions of 25°C.
| Collector-emitter voltage (Vceo) | 70 V |
|---|---|
| Isolation voltage (Viso) | 5 000 Vrms |
| Operating temperature range | -36 to +100 C |
| Collector current (Ic) | 50 mA |
| Current transfer ratio (CTR) range | 40 to 320 % |
Lead forming type (I type) and taping reel type (P type) are also available.
Yes, a TUV (VDE0884) approved type is available as an option.
Yes, it features a TTL compatible output.
