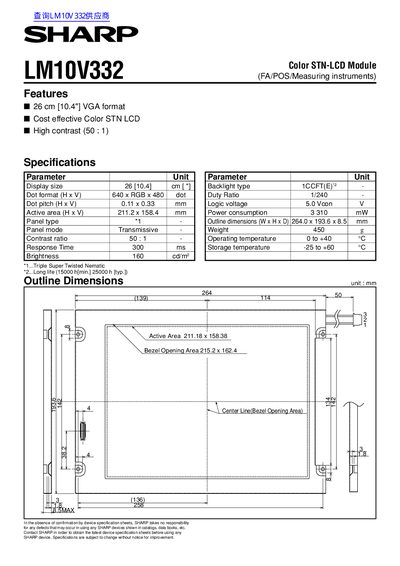

This document is about the specifications of the SHARP LM10V332 color STN-LCD module, describing its features and characteristics.
The document describes the Sharp LM10V332, a cost-effective Color STN LCD module designed for applications in FA (Factory Automation), POS (Point of Sale), and measuring instruments. It features a 10.4-inch display with VGA format resolution.
Key specifications include a dot pitch of 0.11 x 0.33 mm, an active area of 211.2 x 158.4 mm, and a contrast ratio of 50:1. The module utilizes a CCFT backlight type and operates with a logic voltage of 5.0 V.
| Display size | 26 cm [10.4"] |
|---|---|
| Dot format | 640 x RGB x 480 dot |
| Contrast ratio | 50:1 |
| Power consumption | 3310 mw |
| Operating temperature | 0 to +40 °C |
This module is intended for use in FA, POS, and measuring instruments.
The display measures 26 cm or 10.4 inches diagonally.
The outline dimensions are 264.0 x 193.6 x 8.5 mm.
