LJ64K051 EL Display Module is a 24 cm [9.4] inch VGA format display module produced by Panasonic. It features a wide temperature range, high contrast (50:1) and wide viewing angle.

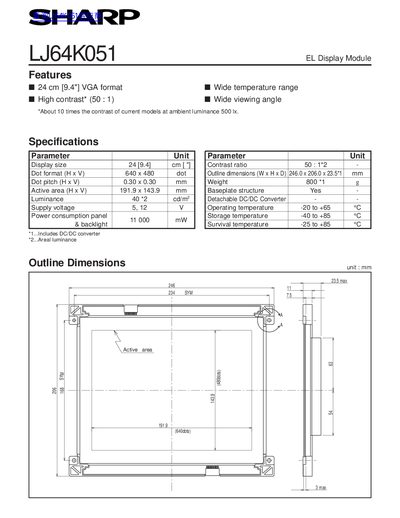

This document is a datasheet for the Sharp LJ 64 KO51 EL Display Module. It is a 24 cm (9.4 inch) VGA format display designed for wide temperature range operation. The module features a high contrast ratio of 50:1 and a wide viewing angle.
| Display size | 24 [9.4] cm ["] |
|---|---|
| Dot format | 640 x 480 dot |
| Dot pitch | 0.30 x 0.30 mm |
| Active area | 191.9 x 143.9 mm |
| Luminance | 40 cd/m2 |
| Supply voltage | 5, 12 V |
| Operating temperature | -20 to +65 °C |
| Weight | 800 g |
| Contrast ratio | 50 : 1 |
The display size is 24 cm [9.4 inches].
The module operates between -20 and +65 degrees Celsius.
The panel power consumption is 11.000 mW.
