The LM10V33 color STN LCD module has the following features: 26 cm [10.4 inch] VGA format; Thin (8.5 mm) and lightweight (450 g); Cost-effective color STN LCD; Low power consumption (4.0 W); High contrast (30:1)

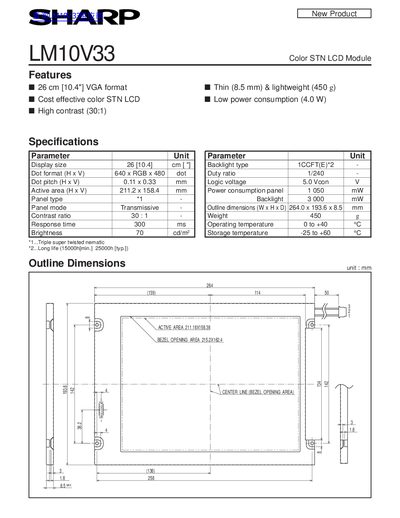

This document introduces the SHARP LM10V33, a new color STN LCD module. It features a 26 cm (10.4 inch) VGA format display with a high contrast ratio of 30:1. The module is designed to be thin at 8.5 mm and lightweight at 450 g, while maintaining low power consumption of 4.0 W.
| Display size | 26 [10.4] cm ["] |
|---|---|
| Dot format | 640 x RGB x 480 dot |
| Dot pitch | 0.11 x 0.33 mm |
| Active area | 211.2 x 158.4 mm |
| Panel type | Triple super twisted nematic |
| Contrast ratio | 30:1 |
| Response time | 300 ms |
| Weight | 450 g |
| Operating temperature | 0 to +40 C |
The display size is 26 cm, which is equivalent to 10.4 inches.
The power consumption of the panel is 1050 mW.
The module operates within a temperature range of 0 to +40 °C.
