The NL27WZ00 is a dual 2-input NAND gate operating from a 1.65 V to 5.5 V supply. It features extremely high speed, over voltage tolerant inputs, LVTTL compatibility, 5 V TTL logic compatibility with VCC = 3 V, LVCMOS compatibility, 24 mA balanced output sink and source capability, and near zero static supply current.
The NL27WZ00 is a high-performance dual 2-input NAND gate designed to operate from a supply voltage of 1.65 V to 5.5 V. It features extremely high speed with a typical propagation delay of 2.4 ns at 5 V and includes over-voltage tolerant inputs compatible with LVTTL and LVCMOS logic levels.

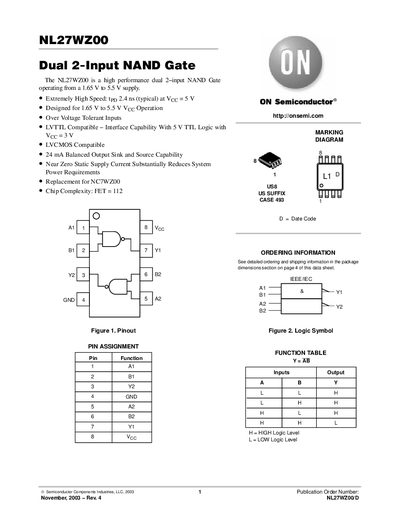

The document provides comprehensive technical data including electrical characteristics, timing diagrams, pin assignments, and logic functions. It also details the US8 tape and reel packaging configuration and physical package dimensions for the SOT-23-6 (CASE 493) component.
| Operating Supply Voltage | 1.65 V to 5.5 V |
|---|---|
| Typical Propagation Delay (tpp) | 2.4 ns at Vcc = 5 V |
| Output Sink and Source Capability | 24 mA Balanced |
| Chip Complexity (FET count) | 112 FETs |
The output Y is the logical NAND of inputs A and B, defined by the equation Y=AB.
Yes, it features LVTTL compatible interface capability when Vec is 3V.
The NL27WZ00 serves as a direct replacement for the NC7WZ00.
