NTR1P02LT1 is a P-channel MOSFET from Semiconductor Components Industries, LLC with a rated voltage of -20 V and a rated current of -1.3 A. It is housed in a SOT-23 package and features low RDS(on) for improved efficiency and extended battery life.

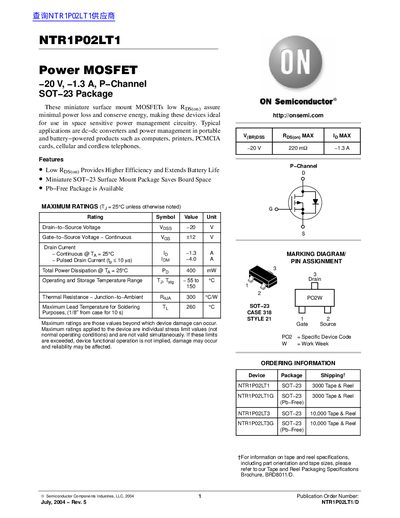

This document is a technical datasheet for the NTR1P02LT1, a miniature surface mount P-Channel Power MOSFET designed for low power loss and energy conservation. The device features a -20V drain-to-source voltage rating and a continuous drain current of -1.3A at 25°C.
| Drain-to-Source Voltage | -20 V |
|---|---|
| Continuous Drain Current | -1.3 A |
| Package Type | SOT-23 |
| Channel Type | P-Channel |
The device supports a continuous drain current of -1.3 A when the ambient temperature is 25°C.
The total power dissipation is rated at 400 mW when the temperature is 25°C.
Dimension A ranges from a minimum of 2.80 mm to a maximum of 3.04 mm.
