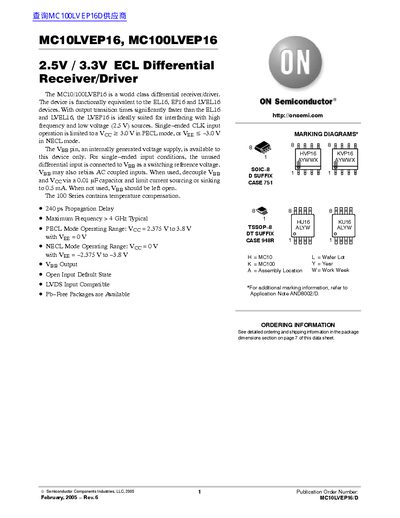

MC10LVEP16, MC100LVEP16 2.5V / 3.3V�ECL Differential Receiver/Driver is functionally equivalent to the EL16, EP16 and LVEL16 devices, but with output transition times significantly faster than the EL16 and LVEL16, the LVEP16 is ideally suited for interfacing with high frequency and low voltage (2.5 V) sources
The MC10LVEP16 and MC100LVEP16 are world-class differential receiver/driver devices functionally equivalent to the EL16, EP16, and LVEL16 series. They feature significantly faster output transition times than previous generations, making them ideal for interfacing with high-frequency and low-voltage (2.5 V) sources.
| Operating Frequency | > 4 GHz Typical |
|---|---|
| Supply Voltage (PECL) | 2.375 V to 3.8 V |
| Supply Voltage (NECL) | -2.375 V to -3.8 V |
| Output Transition Time | 240 ps Propagation Delay |
| Operating Temperature Range | -40 to +85 °C |
The devices operate between -40 and +85 °C, while storage is allowed from -65 to +150 °C.
The device supports a continuous output current of up to 50 mA.
Electrical parameters are guaranteed with transverse airflow greater than 500 Ifpm.
