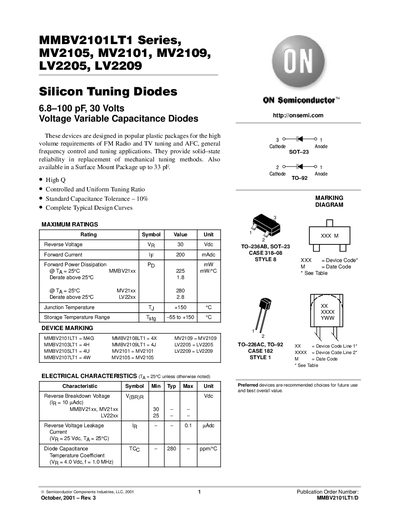

ON Semiconductor MMBV2101LT1 Series Silicon Tuning Diodes Datasheet

This document describes a 6.8-100 pF, 30 volt voltage variable capacitance diode. The product is designed for FM radio and TV tuning, AFC, general frequency control, and tuning applications. It features high Q, controlled and uniform tuning ratio, and standard capacitance tolerance.

Brand: ON Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 80 KB
Published: 06 June, 2012
Updated: 29 September, 2023
Model: MMBV2101LT1
MD5 checksum: 7C30D46AD78DA0F3FC65698B45CAC92A
PDF: ON Semiconductor MMBV2101LT1 Series Silicon Tuning Diodes Datasheet PDF

About this manual

This document provides technical specifications and design curves for the MMBV2101LT1 Series, MV2105, MV2101, MV2109, LV2205, and LV2209 Silicon Tuning Diodes. These devices are designed as solid-state replacements for mechanical tuning methods in FM Radio and TV tuning, AFC, and general frequency control applications.

What's inside

Maximum Ratings
Electrical Characteristics
Typical Device Characteristics
Package Dimensions
SOT-23 Surface Mount Package
Soldering Precautions

Specifications

Forward Current	200 mAdc
Junction Temperature	+150 °C
Storage Temperature Range	-55 to +150 °C
Capacitance Tolerance	Standard 10%

Frequently asked questions

What are the applications for these diodes?

They are designed for FM Radio and TV tuning, AFC, general frequency control, and tuning applications.

What is the maximum junction temperature?

The maximum rated junction temperature (Tj) is +150 °C.
