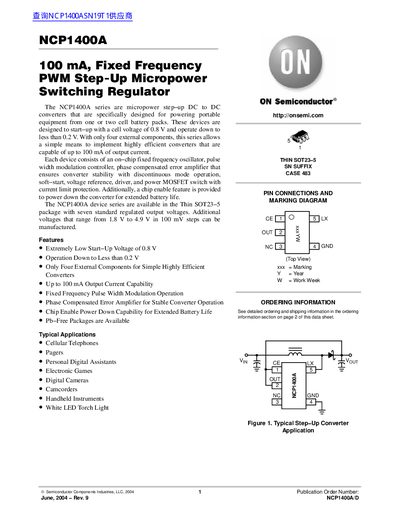

The NCP1400A is a 100mA, fixed frequency PWM step-up micropower switching regulator specifically designed for powering portable equipment from one or two cell battery packs. These devices are designed to start-up with a cell voltage of 0.8V and operate down to less than 0.2V. With only four external components, this series allows a simple means to implement highly efficient converters that are capable of up to 100mA of output current. Each device consists of an on-chip fixed frequency oscillator, pulse width modulation controller, phase compensated error amplifier that ensures converter stability with discontinuous mode operation, soft-start, voltage reference, driver, and power MOSFET switch with current limit protection. Additionally, a chip enable feature is provided to power down the converter for extended battery life. The NCP1400A device series are available in the Thin SOT23-5 package with seven standard regulated output voltages. Additional voltages that range from 1.8V to 4.9V in 100mV steps can be manufactured.
The NCP1400A series are micropower step-up DC to DC converters specifically designed for powering portable equipment from one or two cell battery packs. These devices can start up with a cell voltage of 0.8 V and operate down to less than 0.2 V.
| Output Current Capability | Up to 100 mA |
|---|---|
| Minimum Start-up Voltage | 0.8 V |
| Operating Hold Voltage | Less than 0.2 V |
| External Components Required | Four |
| Operating Ambient Temperature Range | -40 to +85 °C |
The device can start up with a cell voltage of 0.8 V.
The converter is capable of up to 100 mA of output current.
