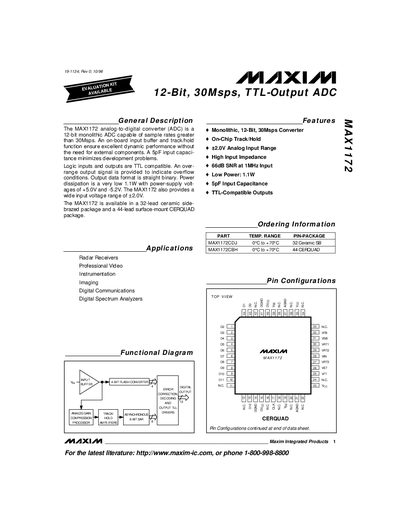

The MAX1172 analog-to-digital converter (ADC) is a 12-bit monolithic ADC capable of sample rates greater than 30Msps. An on-board input buffer and track/hold function ensure excellent dynamic performance without the need for external components. A 5pF input capacitance minimizes development problems. Logic inputs and outputs are TTL compatible. An over-range output signal is provided to indicate overflow conditions. Output data format is straight binary. Power dissipation is a very low 1.1W with power-supply voltages of +5.0V and -5.2V. The MAX1172 also provides a wide input voltage range of ±2.0V. The MAX1172 is available in a 32-lead ceramic side-brazed package and a 44-lead surface-mount CERQUAD package.
The document describes the MAX1172, a 12-bit monolithic ADC with an on-board input buffer and track/hold function. It features TTL-compatible logic inputs and outputs and provides an overrange output signal to indicate overflow conditions.
Key specifications include a resolution of 12 bits, a maximum conversion rate of 30 MHz, and a power dissipation of 1.1W with supply voltages of +5.0V and -5.2V. The device is available in a 32-lead ceramic side-brazed package or a 44-lead surface-mount CERQUAD package.
| Resolution | 12 Bits |
|---|---|
| Sample Rate | >30Msps |
| Power Dissipation | 1.1W |
| Analog Input Range | +2.0V |
The maximum conversion rate is 30 MHz.
The device requires +5.0V and -5.2V power-supply voltages.
Power dissipation is a very low 1.1W with power-supply voltages of +5.0V and -5.2V.
