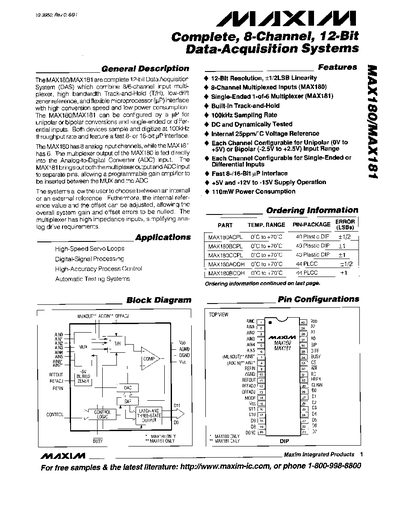

Maxim MAX180/MAX181 Data Acquisition System Datasheet

Brand: Maxim
Category: Data Converters
Document type: Datasheet
Language: English
Pages: 20
File format: PDF
File size: 732 KB
Published: 05 June, 2012
Updated: 05 June, 2012
Model: MAX180
MD5 checksum: 3AA1CFE100520AF907CC6C4BDFB9F95F
PDF: Maxim MAX180/MAX181 Data Acquisition System Datasheet PDF

About this manual

The document describes the MAX180/MAX181 as complete 12-bit Data Acquisition Systems (DAS) combining an input multiplexer, high bandwidth Track-and-Hold, low-drift zener reference, and a flexible microprocessor interface. The systems support both unipolar and bipolar conversions with single-ended or differential inputs.

What's inside

General Description
Applications
Features
Ordering Information
Pin Configurations
Absolute Maximum Ratings
Electrical Characteristics
Timing Characteristics

Specifications

Resolution	12 Bits
Sampling Rate	100kHz
Channels (MAX180)	8-Channel
Channels (MAX181)	6-Channel
Power Consumption	110mW
Supply Voltage	+5V and -12V to -15V

Frequently asked questions

What is the maximum sampling rate for these devices?

The MAX180/MAX181 sample and digitize at a throughput rate of 100kHz.

What are the input voltage ranges for unipolar single-ended operation?

The unipolar, single-ended range is from 0 to +5V.

What is the typical power consumption when VDD is +5V and VSS is -12V?

The supply current is typically 7.0 mA under these conditions.
