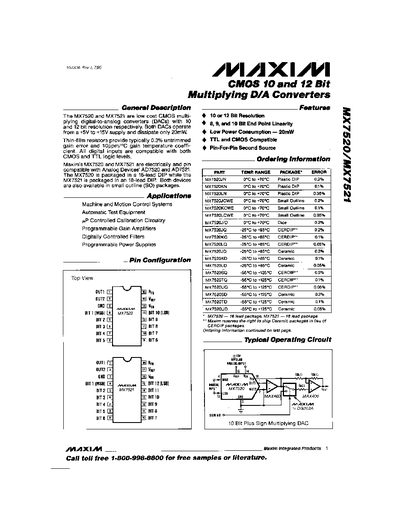

The document details the specifications of the Maxim MX7520 (10-bit) and MX7521 (12-bit) Multiplying D/A Converters. These devices operate from a +5V to +15V supply, dissipate only 20mW, and feature thin-film resistors with typically 0.3% untrimmed gain error.
| Resolution (MX7520) | 10 Bit |
|---|---|
| Resolution (MX7521) | 12 Bit |
| Power Dissipation | 20mW |
The MX7521 has a 12-bit resolution.
Yes, all digital inputs are compatible with both CMOS and TTL logic levels.
