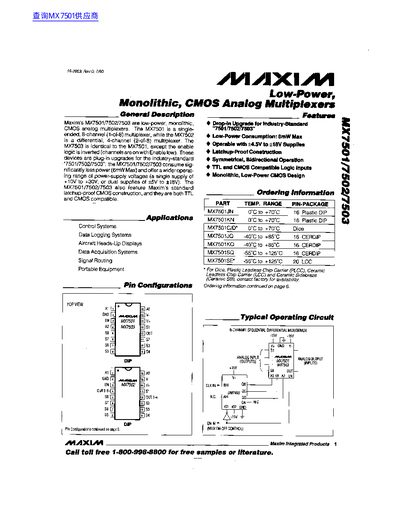

The document introduces the Maxim MX7501/7502/7503 family as low-power, monolithic CMOS analog multiplexers designed as plug-in upgrades for industry-standard devices. The MX7501 is an 8-channel single-ended multiplexer, while the MX7502 is a differential 4-channel device; the MX7503 features inverted enable logic compared to the MX7501.
| Max Power Consumption | 6mW Max |
|---|---|
| Operating Voltage Range (Single) | +10V to +30V |
| Operating Voltage Range (Dual) | +5V to +18V |
| Max Power Dissipation | 1000mW |
The MX7501 is an 8-channel (1-of-8) multiplexer.
The MX7503 has inverted enable logic where channels are on with Enable low.
Yes, they feature TTL and CMOS compatible logic inputs.
