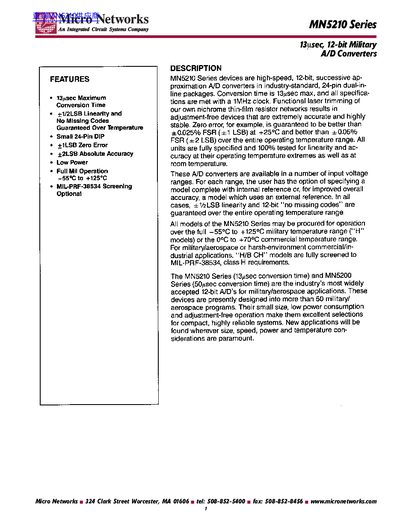

MN5210 Series is 13µsec, 12-bit Military A/D Converters
The MN5210 Series devices are high-speed, 12-bit successive approximation analog-to-digital (A/D) converters housed in industry-standard 24-pin dual-in-line packages. They feature a maximum conversion time of 13 microseconds and meet all specifications with a 1 MHz clock.
These converters utilize functional laser trimming of nichrome thin-film resistor networks to ensure adjustment-free operation, resulting in high accuracy and stability. The series is available for both commercial (0°C to +70°C) and military/aerospace (-55°C to +125°C) temperature ranges.
| Resolution | 12-bit |
|---|---|
| Conversion Time | 13 usec max |
| Clock Frequency | 1 MHz |
| Package Type | 24-pin dual-in-line packages |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
| Linearity Error | +2 LSB max |
The maximum conversion time is 13 microseconds.
No, they feature functional laser trimming for adjustment-free operation.
