IDT7006 is a high-performance 16Kx8 dual-port static RAM produced by IDT. The device has true dual-ported memory cells, supporting simultaneous access to the same memory location. IDT7006 has high performance, low power consumption and good scalability.

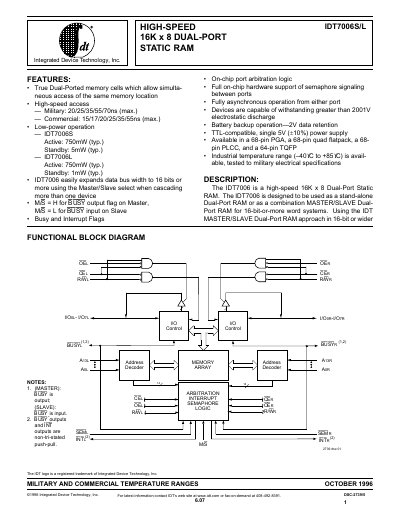

The document describes the IDT7006S/L, a high-speed 16K x 8 Dual-Port Static RAM designed for stand-alone or Master/Slave configurations in 16-bit or wider memory systems. The device features true dual-ported memory cells allowing simultaneous access to the same location and includes on-chip port arbitration logic and semaphore signaling support.
| Memory Capacity | 16K x 8 |
|---|---|
| Access Type | True Dual-Ported |
| Supply Voltage | 5V (±10%) |
| Operating Temperature (Commercial) | 0 °C to +70°C |
| Operating Temperature (Military) | -55 °C to +125°C |
| Active Power Consumption (IDT7006S) | 750mW (typ.) |
| Available Packages | 68-pin PGA, QFP, PLCC, 64-pin TQFP |
Yes, it supports battery backup operation with 2V data retention.
The devices are capable of withstanding greater than 2001V electrostatic discharge.
It easily expands to 16 bits or more using Master/Slave select when cascading.
