This data sheet provides information about MC-4516CB646 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE UNBUFFERED TYPE, including storage capacity, clock frequency, access time, etc.

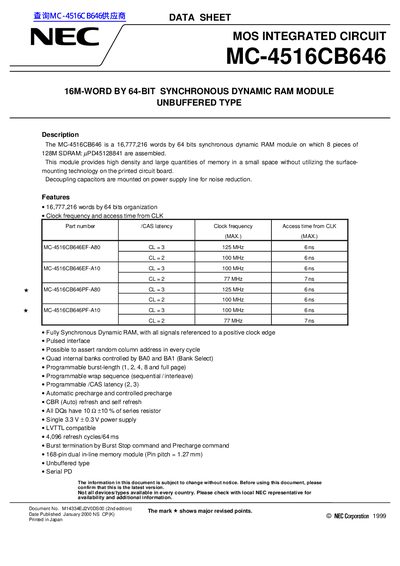

The document describes the NEC MC-4516CB646, an unbuffered type synchronous dynamic RAM module. It is constructed by assembling eight pieces of PD45128841 SDRAM chips to provide high density memory in a small space without surface-mounting technology on the printed circuit board.
Key features include fully synchronous operation with all signals referenced to a positive clock edge, programmable burst lengths (1, 2, 4, 8, and full page), and programmable CAS latency of 2 or 3. The module operates at clock frequencies up to 125 MHz with a single 3.3V power supply.
| Organization | 16,777,216 words by 64 bits |
|---|---|
| Clock Frequency (Max) | 125 MHz |
| Access Time (Max) | 6ns |
| Power Supply Voltage | 3.3V +/-0.3V |
| Package Type | 168-pin Dual In-line Memory Module |
| Operating Temperature Range | 0 to +70 C |
It is an unbuffered type synchronous dynamic RAM module.
The module has 8 pieces of PD45128841 SDRAM assembled on it.
The module supports a maximum clock frequency of 125 MHz.
