HBU406 is an NPN epitaxial planar transistor designed for use in TV Horizontal output and Switching applications. It features a high breakdown voltage.

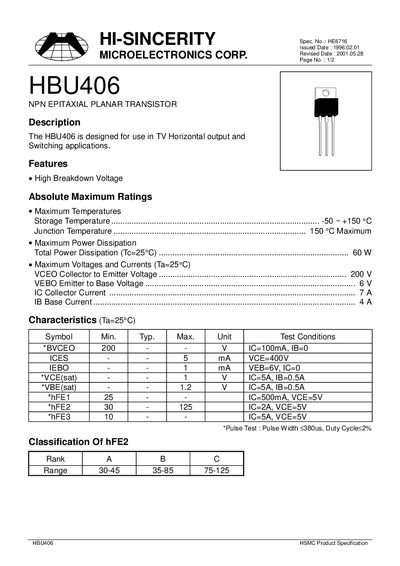

The document is a product specification sheet for the HBU406, an NPN epitaxial planar transistor manufactured by HI-SINCERITY Microelectronics Corp. It is specifically designed for use in TV horizontal output circuits and general switching applications.
Key features include a high breakdown voltage with a maximum collector-to-emitter voltage (VCEO) of 200 V. The device operates within a storage temperature range of -50 to +150 °C and has a total power dissipation rating of 60 W at Tc=25°C.
| Device Type | NPN EPITAXIAL PLANAR TRANSISTOR |
|---|---|
| Application | TV Horizontal output and Switching applications |
| Total Power Dissipation (Tc=25°C) | 60 W |
| Collector to Emitter Voltage (VCEO) | 200 V |
| Collector Current (IC) | 5 A |
| Package Type | 3-Lead TO-220AB Plastic Package |
The HBU406 is designed for use in TV Horizontal output and Switching applications.
The package body length ranges from a minimum of 14.48 mm to a maximum of 15.87 mm.
