This document is the datasheet of H2N6427, which mainly introduces the features and characteristics of the product, including maximum working temperature, maximum power dissipation, maximum voltage and current, characteristic curves, etc.

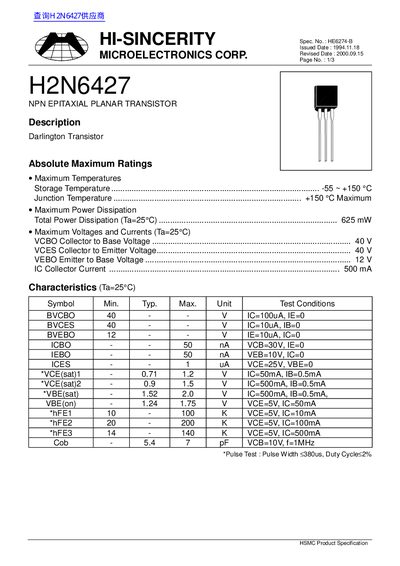

This document is a product specification sheet for the HI-SINCERITY H2N6427, an NPN epitaxial planar Darlington transistor. It provides absolute maximum ratings, electrical characteristics such as current gain (hFE) and saturation voltage, and safe operating area curves.
The H2N6427 is an NPN epitaxial planar Darlington Transistor.
The device can be stored at temperatures between -55 and +150 °C.
The 3-Lead TO-92 Plastic Package has Pin 1 as Emitter, Pin 2 as Base, and Pin 3 as Collector.
