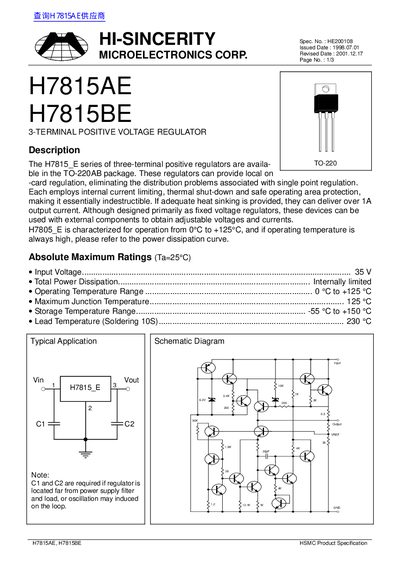

The document describes the features and characteristics of the H7815_E series of three-terminal positive regulators. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each regulator includes internal current limiting, thermal shutdown, and safe operating area protection, making it essentially indestructible. With adequate heat sinking, they can deliver over 1A of output current. Although primarily designed as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
This document provides the product specifications for the H7815_E series of three-terminal positive voltage regulators available in the TO-220AB package. These devices are designed to provide local on-card regulation and feature internal current limiting, thermal shut-down, and safe operating area protection. They can deliver over 1A output current with adequate heat sinking.
| Output Voltage (Typ) | 15 V |
|---|---|
| Operating Temperature Range | 0 °C to +125 °C |
| Maximum Junction Temperature | 125 °C |
| Output Current (Max) | Over 1A |
| Package Type | TO-220AB |
| Short Circuit Current (Max) | 1.5 A |
The typical output voltage for H7815AE at Tj=25°C is 15 V.
Pin 1 is Vin, Pin 2 is Ground, and Pin 3 is Vout.
