Technical specifications and ratings for the HI‑SINCERITY HM14 Darlington NPN transistor in SOT‑89 package.

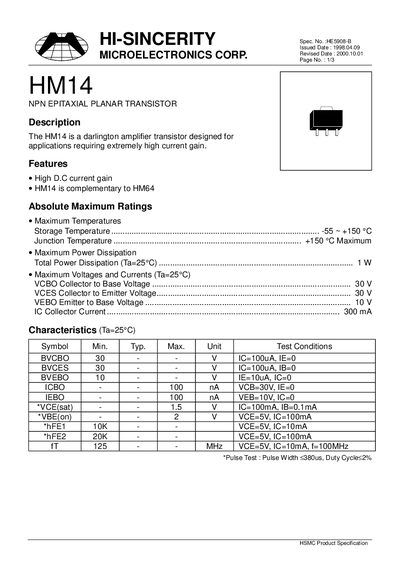

The HM14 is a Darlington NPN epitaxial planar transistor offering very high DC current gain. It is supplied in a 3‑lead SOT‑89 surface‑mount package and is complementary to the HM64 device.
The document lists absolute maximum ratings, electrical characteristics, package dimensions, material details, and contact information for Hi‑Sincerity Microelectronics Corp.
| Collector‑to‑Base Voltage (VCBO) | 30 V |
|---|---|
| Collector‑to‑Emitter Voltage (VCES) | 30 V |
| Emitter‑to‑Base Voltage (VEBO) | 10 V |
| Maximum Collector Current (IC) | 300 mA |
| Package Type | 3‑Lead SOT‑89 Plastic Surface Mounted |
The HM14 can handle up to 300 mA of collector current.
It is supplied in a 3‑lead SOT‑89 plastic surface‑mount package.
The maximum collector‑to‑base voltage is 30 V.
