The Siliconix DG213 is a CMOS switch with four switches, 22V power supply voltage, TTL and CMOS compatible logic, low on-resistance, low leakage current, single supply operation, extended temperature range, fast switching, low charge injection, wide analog signal range, simple logic interface, higher accuracy, minimum transients, reduced power consumption, low cost, etc.

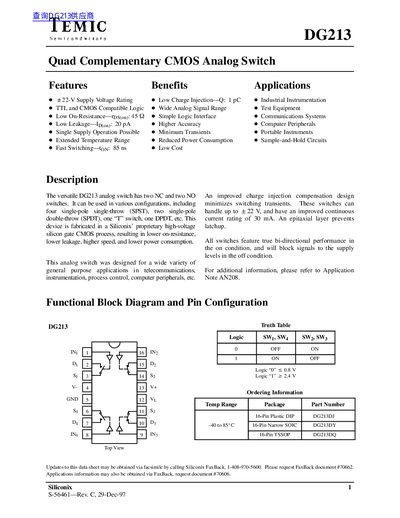

The TEMIC DG213 is a versatile quad complementary CMOS analog switch featuring two normally closed (NC) and two normally open (NO) switches. It operates with supply voltages up to +22 V and supports both TTL and CMOS compatible logic levels. The device is fabricated using Siliconix' proprietary high-voltage silicon gate CMOS process, offering low on-resistance, low leakage current, and fast switching speeds.
| Supply Voltage Rating | +22 V |
|---|---|
| Charge Injection (Q) | 1 pC |
| On-Resistance (rDS(on)) | 45 Ω |
| Leakage Current (Ipjony) | 20 pA |
| Switching Time (ton) | 85 ns |
| Operating Temperature Range | -40 to +85°C |
The device has a +22-V Supply Voltage Rating.
Yes, it features TTL and CMOS Compatible Logic levels.
