The document describes the features and characteristics of BUD600 TELEFUNKEN Semiconductors, including SWOT technology, high-speed technology, planar passivation, low switching losses, low dynamic saturation, etc. It is suitable for applications such as electronic lamp ballast circuits and switch-mode power supplies.

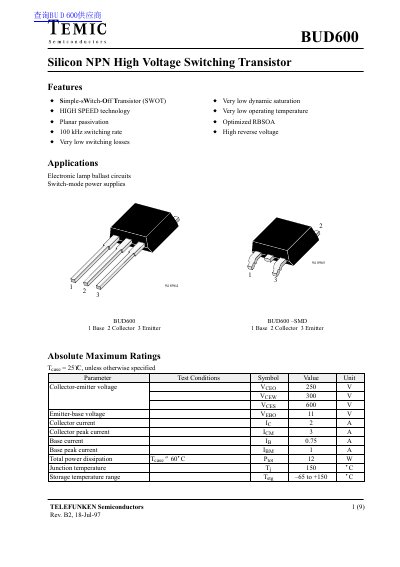

This document is a technical datasheet for the TEMIC BUD600, a Silicon NPN High Voltage Switching Transistor. It highlights features such as high-speed technology with a 100 kHz switching rate, very low switching losses, and optimized RBSOA. The device is designed for applications including electronic lamp ballast circuits and switch-mode power supplies.
| Collector-emitter voltage (VcEO) | 250 V |
|---|---|
| Collector current (Ic) | 2 A |
| Collector peak current (Icm) | 3 A |
| Junction temperature (Tj) | 150 °C |
| Switching rate | 100 kHz |
The BUD600 is designed for use in electronic lamp ballast circuits and switch-mode power supplies.
The maximum collector-emitter voltage is 600 V.
The total power dissipation is 12 W.
