Introduction to U4090B's functions and features, including microphone amplifier, earphone amplifier, ear protection, audio interface, audio switch, line detection circuit, audio amplifier, etc.

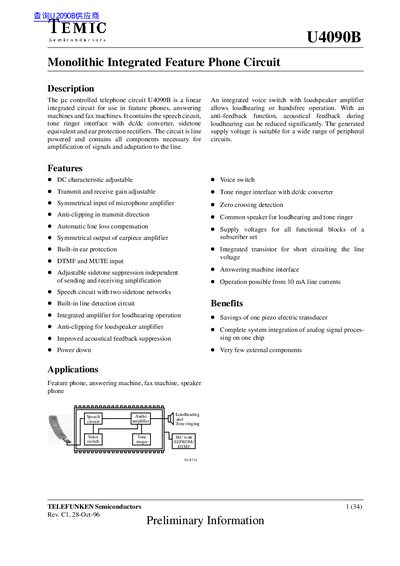

The TEMIC U4090B is a monolithic integrated feature phone circuit designed for use in feature phones, answering machines, and fax machines. It functions as a line-powered linear integrated circuit that contains the speech circuit, a tone ringer interface with a DC/DC converter, sidetone equivalent circuits, and ear protection rectifiers.
The device integrates amplification of signals and adaptation to the telephone line into a single chip. Key features include adjustable transmit and receive gain, automatic line loss compensation, DTMF and MUTE inputs, and an integrated amplifier for loudhearing operation with anti-feedback functions.
Operation of the circuit is possible from 10 mA line currents.
