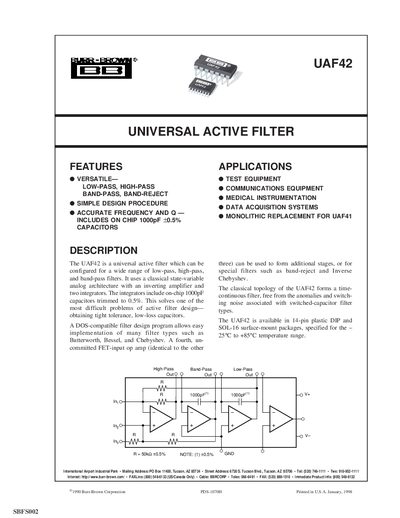

UAF42 is a Burr-Brown universal active filter which can be configured for a wide range of low-pass, high-pass, and band-pass filters.
The UAF42 universal active filter uses a state‑variable analog architecture with on‑chip 1000 pF capacitors trimmed to 0.5 %. It supports low‑pass, high‑pass, band‑pass and band‑reject configurations and is available in 14‑pin DIP (UAF42AP) and 16‑pin SOIC (UAF42AU) packages.
A DOS‑compatible design program simplifies filter design for Butterworth, Chebyshev, Bessel and Inverse Chebyshev types, providing automatic component calculations and performance plots.
| Frequency Range | 0 to 100 kHz |
|---|---|
| Maximum Q | 400 |
| Offset Voltage (Low‑Pass Output) | +5 mV |
| Input Offset Voltage | +0.5 mV |
| Noise Density (10 Hz) | 25 nV/√Hz |
| Slew Rate | 10 V/µs |
| Gain‑Bandwidth Product | 4 MHz |
| Power Supply Voltage | +6 V to +18 V |
| Operating Temperature Range | -25 °C to +85 °C |
The UAF42 operates from 0 Hz up to 100 kHz.
The maximum quality factor (Q) is 400.
