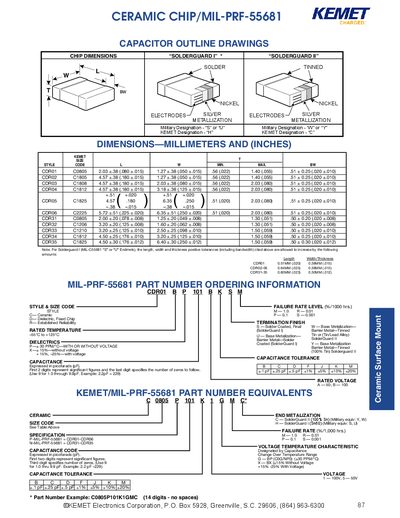

This document is about the specification of KEMET's ceramic chip capacitors, including size, capacitance, and package.
This document provides outline drawings and dimensional specifications for various sizes of KEMET ceramic chip capacitors, including CDR01 through CDR06 series. It details the physical dimensions in millimeters and inches for different package styles.
The datasheet also includes comprehensive ordering information and part number equivalents based on the MIL-PRF-55681 standard. It defines parameters such as style codes (Ceramic, Dielectric), rated temperatures (-55°C to +125°C), dielectrics (P or X), capacitance coding, failure rate levels, termination finishes, and voltage temperature characteristics.
| Rated Temperature Range | -55°C to +125°C |
|---|---|
| Dielectric Types | P or X |
| Capacitance Unit | picofarads (pF) |
| Failure Rate Levels | M, R, P, S |
The part number consists of 14 digits with no spaces, such as C0805P101K1GMC.
The first two digits represent significant figures.
