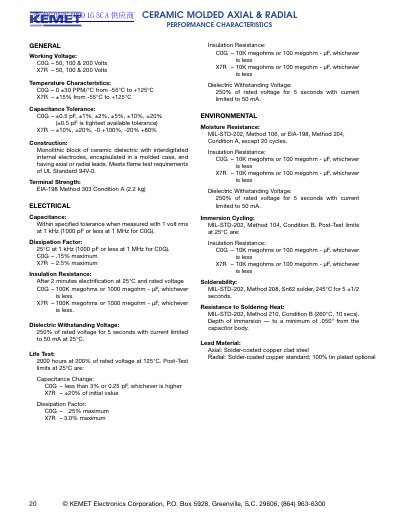

The document provides information about the performance characteristics of KEMET Electronics Corporation's CERAMIC MOLDED AXIAL & RADIAL products, including working voltage, temperature characteristics, capacitance tolerance, and construction.
This document provides performance characteristics and specifications for KEMET's 20CERAMIC MOLDED AXIAL & RADIAL - STANDARD series. It covers two temperature characteristic types: C0G (Ultra Stable) with a range of -55°C to +125°C, and X7R (Standard) also ranging from -55°C to +125°C.
| Working Voltage (C0G) | 50, 100 & 200 Volts |
|---|---|
| Temperature Range (C0G) | -55°C to +125°C |
| Capacitance Tolerance (C0G) | ±0.5 pF, ±1%, ±2%, ±5%, ±10%, ±20% |
| Working Voltage (X7R) | 50, 100 & 200 Volts |
| Temperature Range (X7R) | -55°C to +125°C |
| Capacitance Tolerance (X7R) | ±10%, ±20%, -0 +100%, -20% +80% |
| Insulation Resistance (C0G) | 100K megohms or 1000 megohm - µF |
| Dielectric Withstanding Voltage | 250% of rated voltage for 5 seconds |
C0G capacitors operate from -55°C to +125°C.
The maximum dissipation factor for C0G is .15%.
Available working voltages include 50, 100, and 200 Volts.
