The datasheet provides information about BDW73, BDW73A, BDW73B, BDW73C, BDW73D NPN silicon power Darlington transistors, including package, ratings, polarity, pins, power dissipation, working temperature, nominal current, etc.

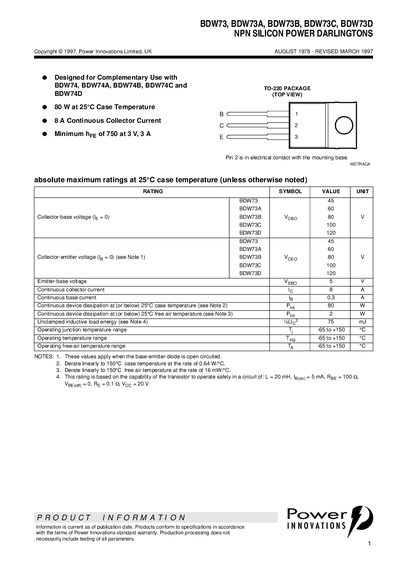

This document is a technical datasheet for the Power Innovations BDW73 series of NPN silicon power darlington transistors. The series includes variants BDW73 through BDW73D, designed for complementary use with matching PNP devices (BDW74 series). Key specifications include a continuous collector current of 8 A and a maximum power dissipation of 80 W at a case temperature of 25°C.
| Continuous Collector Current | 8 A |
|---|---|
| Maximum Power Dissipation (Case 25°C) | 80 W |
| Package Type | TO-220 |
The BDW73 series is designed for complementary use with BDW74, BDW74A, BDW74B, BDW74C and BDW74D.
The continuous base current rating is 0.3 A.
