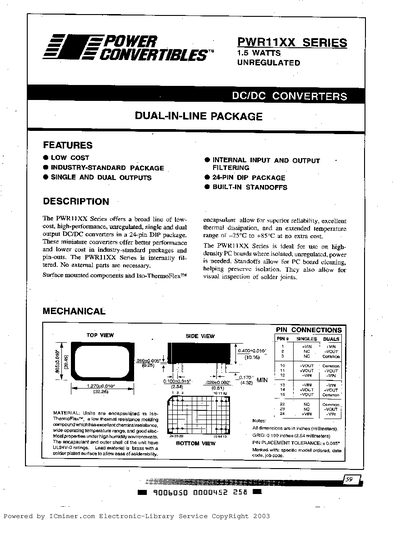

The PWR11XX Series offers a broad line of low-cost, high-performance, unregulated single and dual output DC/DC converters in a 24-pin DIP package. These miniature converters are internally filtered, requiring no external parts for basic operation, making them ideal for use on high-density PC boards where isolated power is needed.
| Package Type | 24-pin DIP |
|---|---|
| Operating Temperature Range | -25°C to +85°C |
| Switching Frequency | 150 kHz |
| Input Voltage Range (Single Output) | 4.5 VDC to 65 VDC |
| Isolation Rated Voltage | 500 Vdc |
Output noise can typically be reduced to 30mVp-p by adding a 10pF tantalum capacitor with an ESR of less than 150mΩ across each output.
The rated power output is 1.5 watts.
They operate from -25°C to +85°C at no extra cost, with an extended operation range of -40°C to +100°C.
The absolute maximum input voltage rating is 65 VDC.
