The document describes a power module with a maximum output power of 6 Watts, featuring voltage accuracy, load regulation, and ripple and noise characteristics.

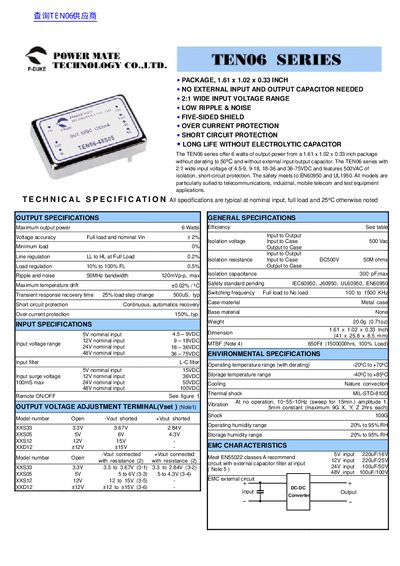

The document describes the TENO6 series of DC-DC converters manufactured by Power Mate Technology. These devices provide up to 6 watts of output power in a compact package without requiring external input or output capacitors, making them suitable for telecommunications and industrial applications.
Key features include a wide input voltage range (up to 75VDC), short-circuit protection, over-current protection, and isolation voltages meeting safety standards like EN60950 and UL1950. The datasheet provides detailed technical specifications, including efficiency ratings, load regulation, ripple and noise levels, and specific model configurations for various input/output voltage combinations.
| Maximum output power | 6 Watts |
|---|---|
| Package dimensions | 1.61 x 1.02 x 0.33 inch |
| Isolation voltage | 500 VAC |
| Ripple and noise | 120mVp-p, max |
| Operating temperature range | -20°C to +70°C |
No, the TENO6 series does not need external input and output capacitors.
The maximum input voltage for the 48V nominal model (TENO6-48) is 75VDC.
The product meets EN60950 and UL1950 safety standards.
