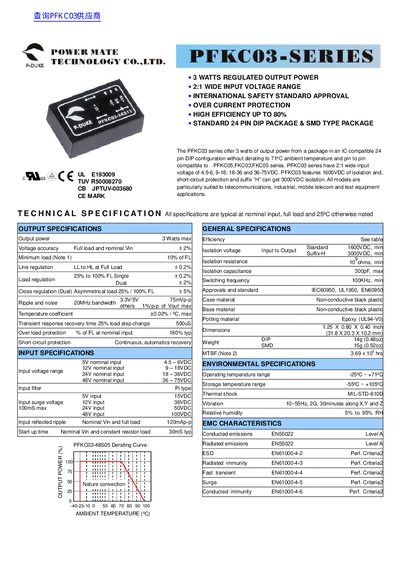

This document describes a 3-watt power module with high voltage accuracy, low minimum load requirement, stable line and load regulation performance, and good overload and short circuit protection.
The PDKC03 series offers a maximum output power of 3 Watts from an IC-compatible 24-pin DIP configuration. These devices provide pin-to-pin compatibility with the PFKCO5, FKC03, and FKC05 series and operate without derating up to a 71°C ambient temperature.
| Output Power | 3 Watts max |
|---|---|
| Input Voltage Range (24V nominal) | 18-36VDC |
| Isolation Voltage | 1600VDC, min |
| Switching Frequency | 100KHz, min |
| Operating Temperature Range | -25°C ~ +71°C |
The device provides a regulated output power of up to 3 watts.
Standard models offer a minimum isolation voltage of 1600VDC.
