This document provides specifications of 15W DC/DC buck converter, including efficiency, isolation voltage, isolation resistance, isolation capacitance, switching frequency, approvals and standards, case material, base material, potting material, dimensions, weight, MTBF, operating temperature range, maximum case temperature, storage temperature range, thermal impedance, thermal shock, vibration, relative humidity, EMC characteristics, output power, voltage accuracy, minimum load, line regulation, load regulation, cross regulation, ripple and noise

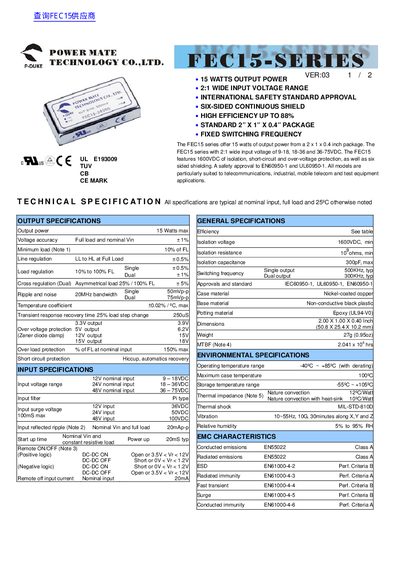

The Power Mate Technology FEC15 series offers 15 watts of output power from a compact 2 x 1 x 0.4 inch package. These converters feature a 2:1 wide input voltage range (9-18V, 18-36V, or 36-75VDC) and achieve high efficiency up to 88%. They include standard safety approvals such as UL60950-1 and EN60950-1, along with features like six-sided shielding, short-circuit protection, and over-voltage protection.
| Efficiency | Up to 88% |
|---|---|
| Isolation Voltage | 1600VDC min |
| Operating Temperature Range | -40°C ~ +85°C |
| Package Dimensions | 2.00 X 1.00 X 0.40 Inch |
| Weight | 27g |
The series requires a minimum 10% loading on the output to maintain specified regulation.
Yes, the series features short-circuit and over-voltage protection.
The series has safety approval to EN60950-1 and UL60950-1.
